Data Sheet
Product Code: JBE102
Product Description: 2-Gang 1-Way V-Pro Multi-Point Remote/Tactile Touch Control Master LED Dimmer 2 x 0-100W
Range: Classic
Finish: Brushed Brass
Product Category: LED Dimmers
Insert/Knob Colour: Brass Buttons
Barcode: 5021575011340

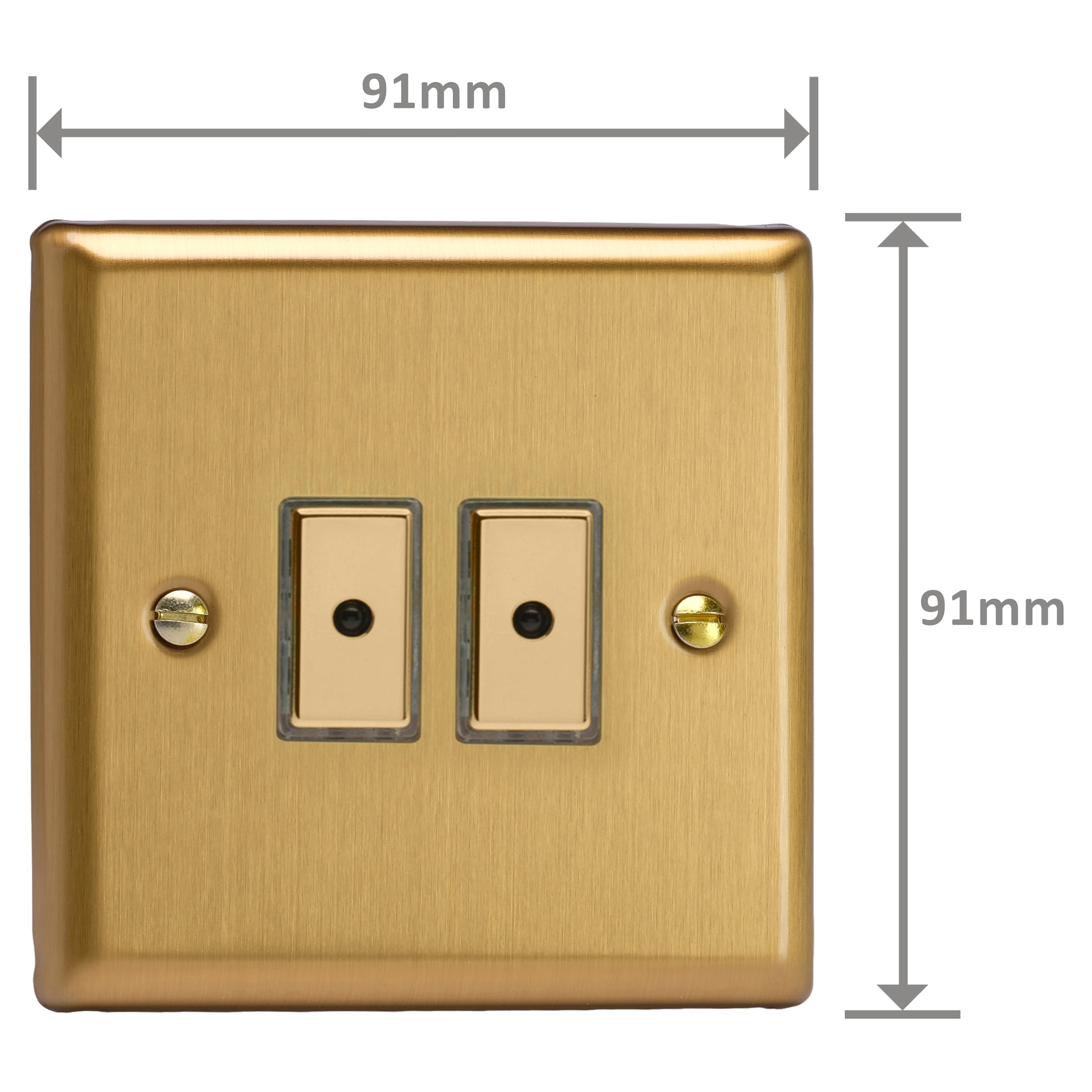

Dimensions: 91x91x27mm
Faceplate Depth: 8mm
Net Weight: 146g
Gross Weight: 148g
Fixing Centres: 60.3mm
Depth from Mounting Face: 16.1mm
Recommended Back Box Depth: 25mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: LED: 100W
Maximum Current Rating: 0.7A
Terminal (Live) Diameter: 3.2mm; Capacity: 3 x 1.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Product Features
V-Pro intelligent dimming technology
Tactile touch control or remote control from dedicated handset or spare button on an existing handset (e.g. TV remote)
Soft start feature and intelligent overload protection
1-Way or multi-Way when used with Multi-Point dimming Companion Controller unit(s)
Bevelled edge faceplate
Classic Collection
The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior. Each plate is expertly manufactured in the UK to the highest standard.Brushed Brass Finish
The Brushed Brass finish combines vintage style with a modern twist to suit both a traditional or modern decor. Black or white inserts and rockers are available, or choose polished brass rockers for an added touch of class. Varilight?s decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
Intended Applications: Indoor Use Only. Domestic lighting circuits including many dimmable LEDs.
Note: Some LED lamps are not designed for electronic dimmer switches and may remain illuminated even when a dimmer switch is turned off. This can be corrected using one Varilight LEDFix load regulator per circuit (part number YAGF-P).
Safety Advice: Not suitable for use with non-dimmable fluorescent bulbs and tubes, TRIAC dimmable loads, wire-wound or toroidal transformers or electric motors. Do not overload. Product Must Be Earthed.
Applicable Safety Standard: BS EN 60669-2-1
Commodity Code: 85365005
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue: 28th April 2025 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
