Data Sheet

Product Code: HDY3IS.PD

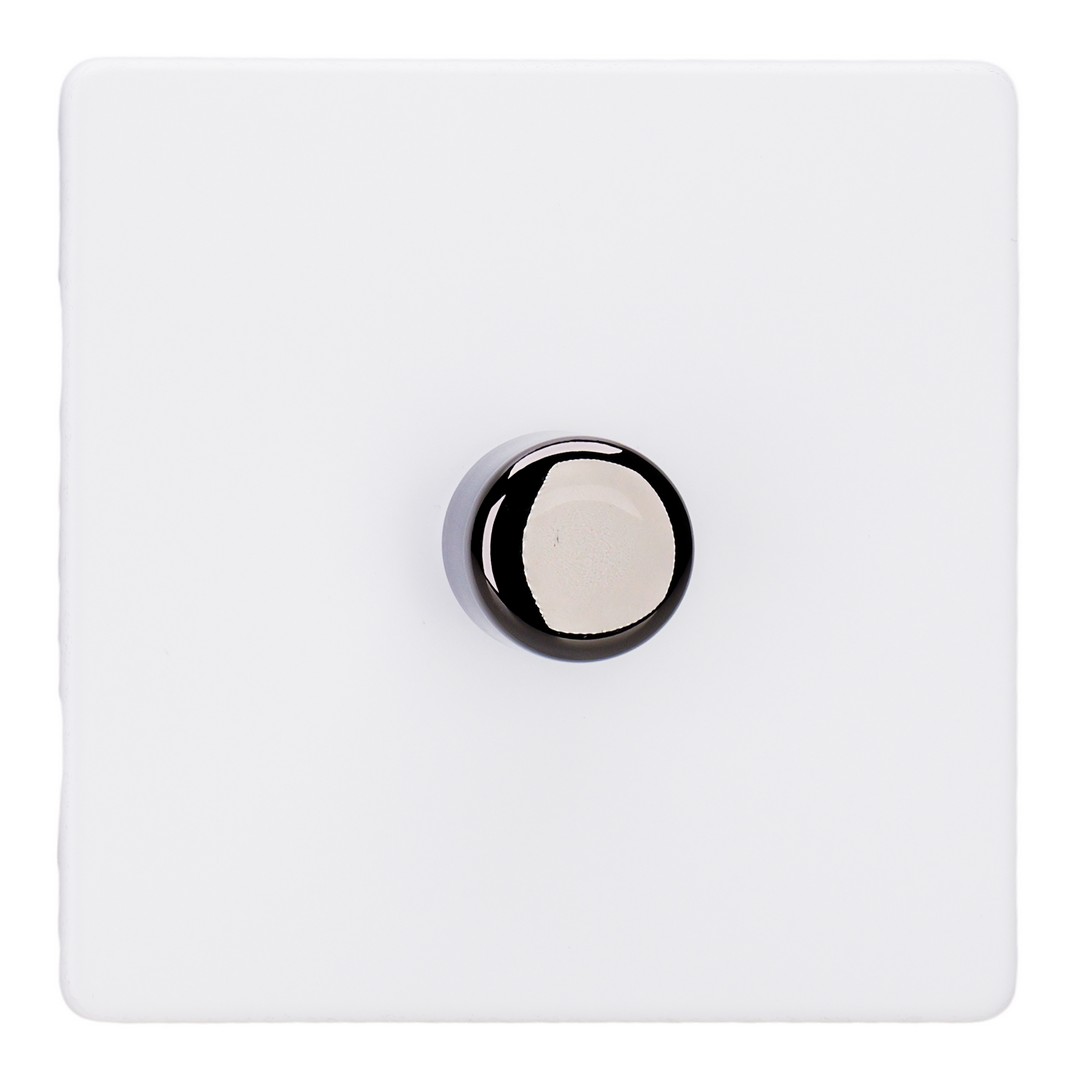

Product Description: 1-Gang 2-Way V-Dim Push On/Off Rotary Dimmer 1 x 60-400W

Range: Screwless

Finish: Primed Paintable

Product Category: Halogen Dimmers

Insert/Knob Colour: Iridium Knob

Barcode: 5021575034332

Dimensions: 86x86x49mm

Faceplate Depth: 4mm

Net Weight: 156g

Gross Weight: 158g

Fixing Centres: 60.3mm

Depth from Mounting Face:

Recommended Back Box Depth: 35mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: Halogen: 400W

Maximum Current Rating: 1.7A

Terminal (Live) Diameter: 3.2mm; Capacity: 3 x 1.5mm²

Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²

Intended Applications: Indoor Use Only. Domestic lighting circuits. Do not use masking tape on any decorative products, or install on damp plaster.

Safety Advice: Not suitable for use with non-dimmable fluorescent bulbs and tubes, wire-wound or toroidal transformers or electric motors. Do not overload. Product Must Be Earthed.

Applicable Safety Standard: BS 5518

Commodity Code: 85365007

Declaration of Conformity

Product Features

  V-Dim heavy duty dimming for incandescent lighting, including mains and low voltage halogen

  Dims 60-400W of lighting; add up your lamp wattages to choose the right dimmer

  Push on/off, rotate to dim; use in a 1-way circuit or in a 2-way circuit alongside a standard switch

  Remembers your last brightness setting when switched back on

  For dimmable LEDs choose the V-Pro range instead

  Screwless low profile faceplate, just 4mm deep with no visible fixings, fits a 35mm back box

Screwless Collection
Screwless Low Profile: minimalist design with clip-on faceplates and hidden fixings for a smooth, modern look.

Primed Paintable Finish
Primed metal faceplates are supplied ready to paint, so that customers can choose colours to coordinate perfectly with their decor, creating a completely unique product that stands out from the crowd.
