Data Sheet
Product Code: IQS002

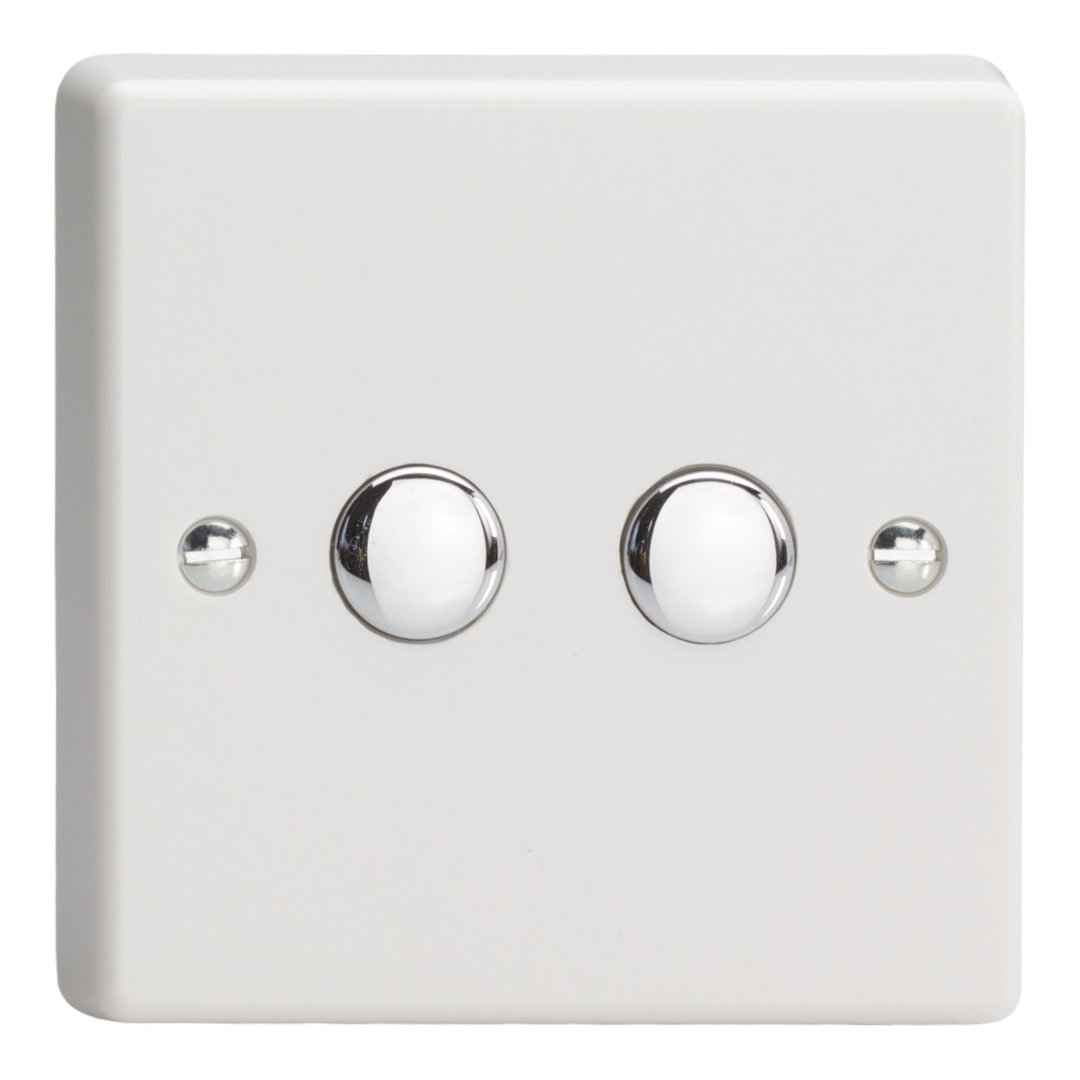

Product Description: 2-Gang Touch Control Dimming Companion Controller for use with Master on 2-Way Circuits
Range: White
Finish: White Plastic
Product Category: Halogen Dimmers
Insert/Knob Colour: Chrome Buttons
Barcode: 5021575580365
Dimensions: 85x85x30mm
Faceplate Depth: 11mm
Net Weight: 126g
Gross Weight: 128g
Fixing Centres: 60.3mm
Depth from Mounting Face: 16.7mm
Recommended Back Box Depth: 25mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: Refer to Master Dimmer
Maximum Current Rating: Refer to Master Dimmer

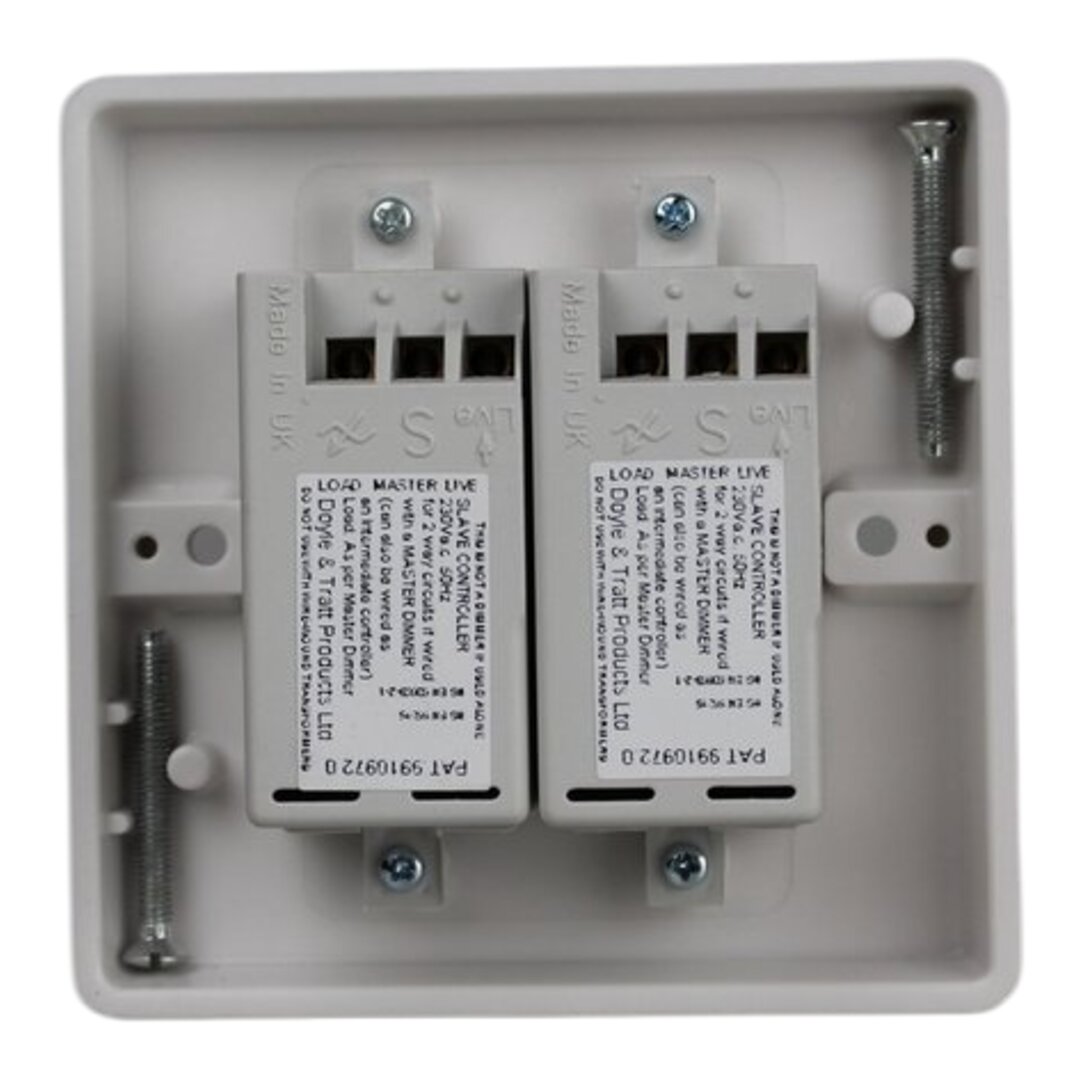

Terminal (Live) Diameter: 3.2mm; Capacity: 3 x 1.5mm²
Product Features
V-Plus intelligent dimming technology
Use with touch & remote master dimmers in multi-Way circuits
Soft start feature and intelligent overload protection
Durable white plastic
Intended Applications: Indoor Use Only. Domestic lighting circuits.
Safety Advice: Not suitable for use with non-dimmable fluorescent bulbs and tubes, TRIAC dimmable loads, wire-wound or toroidal transformers or electric motors. Do not overload.
Applicable Safety Standard: BS EN 60669-2-1
Commodity Code: 85365005
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue: 10th December 2024 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
